Overview - Front Door Trim Panel

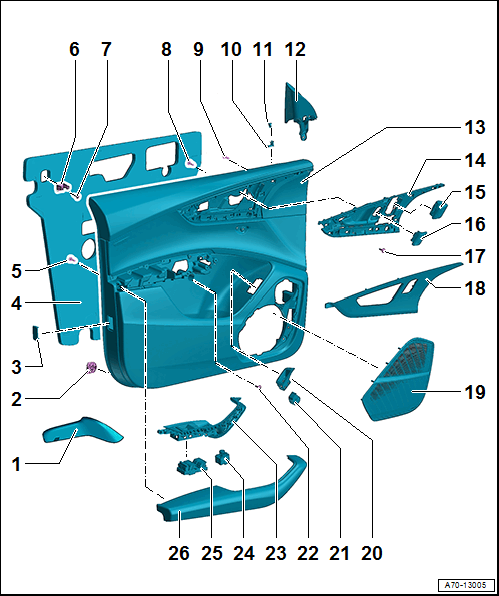

Fig 1: Exploded View Of Front Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Inlay Mat
- Insert in the door pocket.
Clip
- For door trim panel
- Quantity: 9
- Insert in the trim panel
Door Warning Reflector
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Insulation Mat
Bolt
- For the armrest
- Quantity: 14
- 1.5 Nm
Securing Bracket
- For door trim panel
Bolt
- 5 Nm
Bolt
- For interior door mechanism on the inside
- Quantity: 12
- 1.5 Nm
Door Trim Panel Stopper
- 5 Nm
Sleeve
- For the Central Locking -SAFE- Indicator Lamp -K133-
- Driver door only
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel by using the old panel as a model
Central Locking -Safe- Indicator Lamp -K133-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - FRONT DOOR LAMPS .
Trim Panel
- For mirror cover
- Removing and Installing. Refer to MIRROR COVER TRIM, REMOVING AND INSTALLING .
Door Trim Panel
- When replacing the door trim panel, a hole for the sleeve -item 10- must be made in the new panel using the old panel as a template.
- Removing and Installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
Interior Door Mechanism
- Removing and Installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Driver Seat Memory Settings Control Head -E464-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Driver Interior Locking Button -E308-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Bolt
- For interior door mechanism on the outside
- Quantity: 2
- 1.5 Nm
Decorative Trim
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
Trim
- For midrange speaker
- Removing and Installing. Refer to MIDRANGE SPEAKER TRIM, REMOVING AND INSTALLING .
Switch Trim
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Rear Lid Remote Release Button -E233-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Bolt
- For door trim panel
- Quantity: 3
- 4.5 Nm
Switch Mount
- Removing and Installing. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .
Exterior Rearview Mirror Adjuster -EX11-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Power Window Control Head in Driver Door -EX36-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Pull Handle with Armrest
- Removing and Installing. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .
