Overview - Impact Member

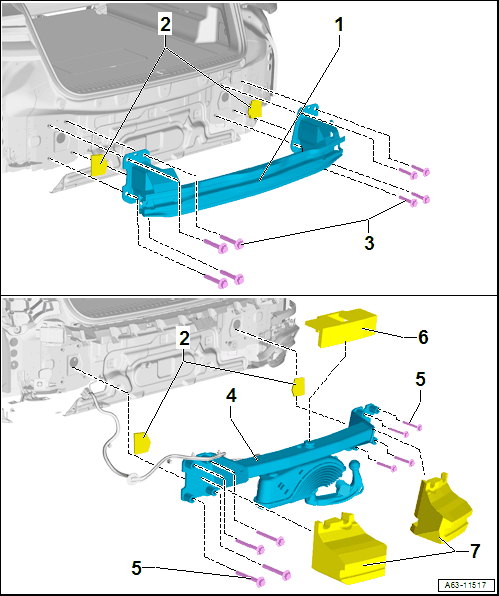

Fig 1: Exploded View Of Rear Impact Member

Courtesy of AUDI OF AMERICA, LLC

Impact Member
- Without trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER WITHOUT TRAILER HITCH, REMOVING AND INSTALLING .
Seal
- For the longitudinal member
Bolt
- 70 Nm
- Quantity: 4
Impact Member
- With trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER WITH TRAILER HITCH, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 110 Nm
Filler Piece
- Center
Filler Piece
- Outside
