Bumper Cover Trim, Removing And Installing, Side: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2-.

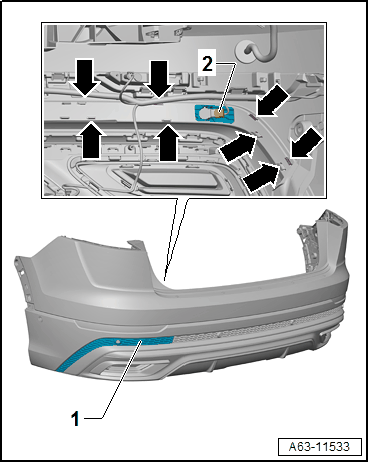

GWWA63-11533Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the trim -1- from the bumper cover.
