Bumper Cover Trim, Removing And Installing, Center: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2- on the left and right side.

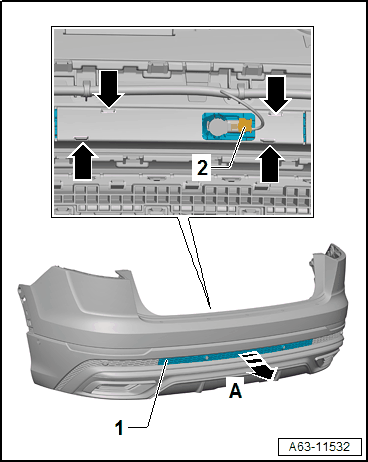

GWWA63-11532Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the trim -1- in direction of -arrow A-.
