Side Air Intake Grille, Removing And Installing: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

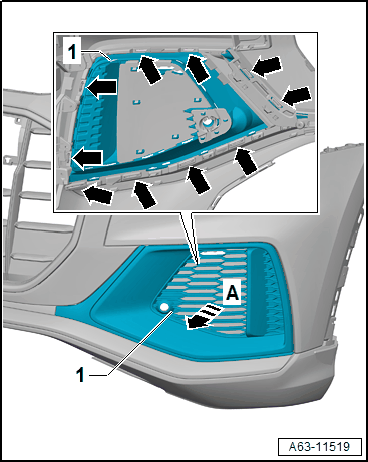

-- Release the catches -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air intake grille -1- in direction of -arrow A-.

-- Vehicles with air intake grille trim: release the catches -arrows- and remove the trim -2- from the air intake grille -1- in direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with parking aid sensor mount: release the catches -arrows- and remove the mount -3- from the air intake grille -1- in direction of -arrow A-.
