Bumper Cover Side End Panel, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

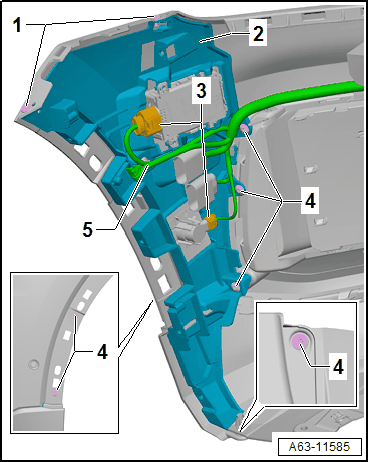

-- Drill out the pop rivet heads -1- and pierce the rivet shaft.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, release and disconnect the connectors -3-.

-- If equipped, remove the front parallel parking assist sensors. Refer to LEFT/RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR -G568- / -G569-, REMOVING AND INSTALLING .

-- Free up the wiring harness -5-.

-- Remove the bolts -4-.

-- Remove the side end panel -2- from the bumper cover.
