Plenum Chamber Bulkhead, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the tower brace. Refer to TOWER BRACE, REMOVING AND INSTALLING .

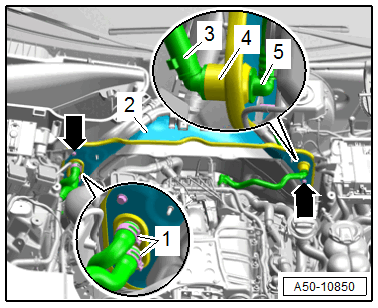

-- Remove the vacuum hoses -3 and 5- on both sides from the grommet -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1-, disconnect the coolant hoses and free them up.

-- Remove the bolts -arrows-.

-- Remove the plenum chamber bulkhead -2- upward.
