Overview - Plenum Chamber Cover

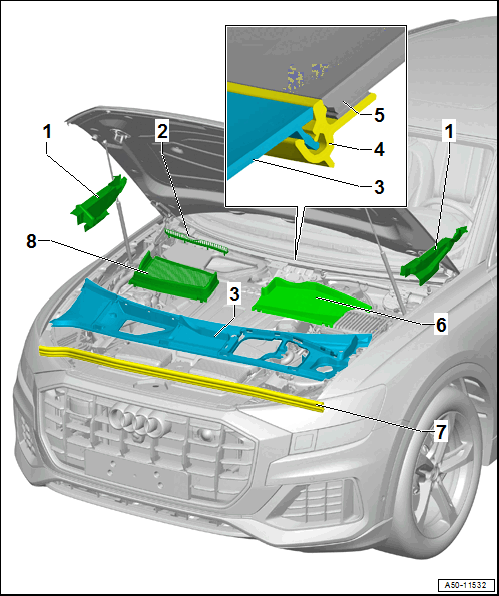

Fig 1: Exploded View Of Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

Cover
- Rear
- For the fender
- Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
Grille
Plenum Chamber Cover
- Removing and Installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
Retainer
- Windshield component
Windshield
Access Cover
- For the brake fluid reservoir
- For A/C connections
Seal
Cover
- For the fresh air intake
