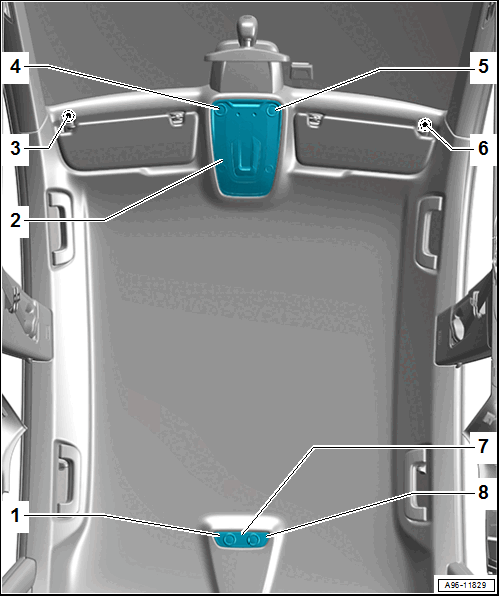

Component Location Overview - Controls In Roof Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Right Rear Reading Lamp Switch -E455-
   • Integrated in the rear interior lamp
2. Front Roof Module -WX3-
   • Overview. Refer to OVERVIEW - FRONT INTERIOR LAMPS .
3. Front Passenger Vanity Mirror Lamp Contact Switch -F148-
   • Integrated in the sun visor pivot bearing
   • Cannot be replaced separately
   • If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .
4. Right Front Reading Lamp Button -E634-
   • Integrated in the front roof module
5. Left Front Reading Lamp Button -E633-
   • Integrated in the front roof module
6. Driver Vanity Mirror Lamp Contact Switch -F147-
   • Integrated in the sun visor pivot bearing
   • Cannot be replaced separately
   • If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .
7. Rear Interior Lamp -WX2-
   • Replace the clip after removing
   • Removing and installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
8. Left Rear Reading Lamp Switch -E454-
   • Integrated in the rear interior lamp
