Overview - Telephone, AUDI Phone Box, 9ZE

The Mobile Device Charger 1 -J1146- (Audi phone box) is installed in the front center console storage compartment. It can be operated using the MMI Infotainment system or by the Cellular Telephone -R54-.

The microphones for the Microphone Unit In Front Roof Module -R164- are integrated in the Front Roof Module -WX3-. One microphone (Left Front Microphone -R140-) is connected directly to the Information Electronics Control Module 1 -J794-. On IW1/IW3 and IV0 via the Data Bus on Board Diagnostic Interface - J533- and on IW1/IW3 and IV1 through IV8 via the Control Module for Emergency Call Module and Communication Unit -J949-.

The LTE Antenna 3 -R330- located behind the rear bumper cover on the right side is used to connect to the cellular network.

The antenna connection is located on the Cellular Telephone Amplifier -R86- in the luggage compartment on the right rear side.

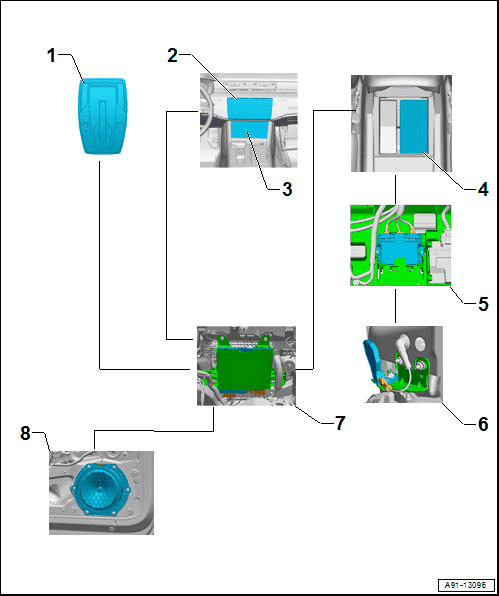

9ZE - Audi phone box

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Microphone -R140- /Right Front Microphone -R141-, in the Front Roof Module -WX3-.
2. Front Information Display Control Head -J685- in center of the instrument panel
3. Front Information Display Control Head 2 -J1060-, in the front center console
4. Mobile Device Charger 1 -J1146-, phone box, in the front center console storage compartment
5. Cellular Telephone Amplifier -R86- in the luggage compartment on the right rear side
6. LTE Antenna 3 -R330- behind the rear bumper cover on the right side
7. Information Electronics Control Module 1 -J794- behind the glove compartment
8. Sound Systems

Antennas

9ZE - Audi phone box without Audi connect EL0:

• The LTE Antenna 3 -R330- for the telephone function is installed behind the rear bumper cover on the right side.
• There are no LTE antennas (LTE Antenna 1 -R297- /LTE Antenna 2 -R306-) installed for data transmission.

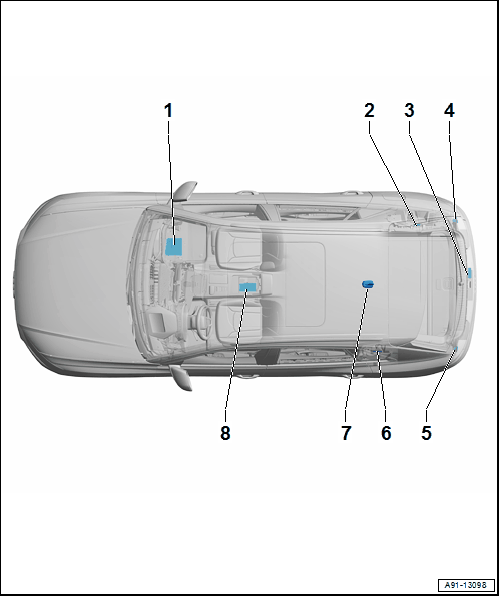

Overview Antennas

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
2. Cellular Telephone Amplifier -R86-
3. Center Bumper Antenna
   • Emergency Call Module Antenna -R263-, without connect PLUS (IV0)
4. Right Bumper Antenna
   • LTE Antenna 3 -R330-, 9ZE
5. Left Bumper Antenna
   • Emergency Call Module Antenna - R263-, IW1/IW3/IW5 with connect PLUS (IV1 through IV8)
6. not installed
7. Roof Antenna -R216-
   • Emergency Call Module Antenna 2 -R322-, IW1/IW3/IW5
8. Mobile Device Charger 1 -J1146-

• IW1/IW3/IW5 - with emergency call system, eCall/bCall
• EL3 - with online service

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Antenna wires, repairing. Refer to ANTENNA WIRES, REPAIRING .
