Component Location Overview - Telephone System

Courtesy of AUDI OF AMERICA, LLC

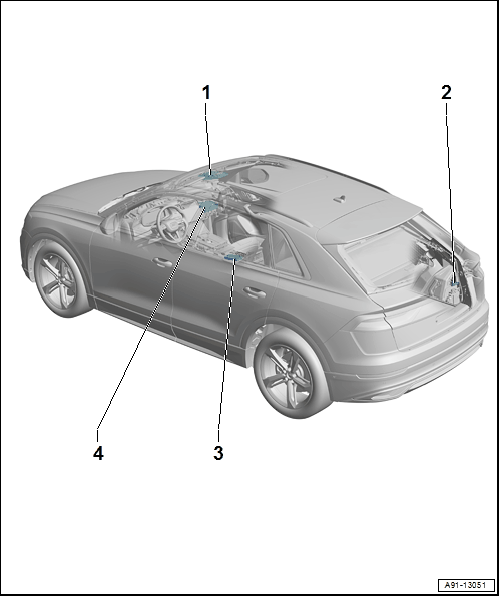

1. Front Roof Module -WX3-
   • Left Front Microphone -R140-
   • Right Front Microphone -R141-
   • Interior Microphone -R74-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
2. Cellular Telephone Amplifier -R86-
   • the appropriate Wiring Diagram
   • Removing and installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
3. Mobile Device Charger 1 -J1146-
   • In the front center console storage compartment
   • the appropriate Wiring Diagram
   • Removing and installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
4. Information Electronics Control Module 1 -J794-
   • Behind the glove compartment
   • the appropriate Wiring Diagram
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
