TV Card Reader, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the TV card.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

The bracket -2- must be removed first.

Courtesy of AUDI OF AMERICA, LLC

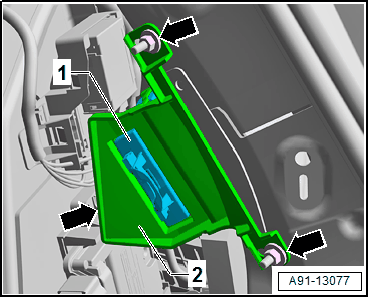

-- Remove the nuts (quantity: 3) -arrows- and remove the TV Card Reader -R204- -1- with the bracket -2-.

-- Release and disconnect the connectors from the TV Card Reader -R204- -1-.

The TV Card Reader -R204- -1- is only clipped into the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

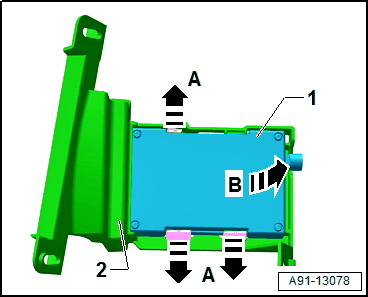

-- Press the retainers in direction of -arrows A- outward.

-- Remove the TV Card Reader -R204- -1- from the bracket -2- in direction of -arrow B-.
