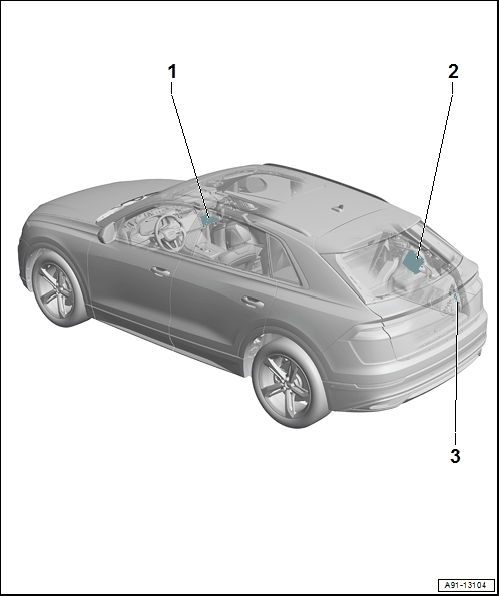

Component Location Overview - TV System
- DVD Player -R7-
- In the glove compartment
- the appropriate Wiring Diagram
- Removing and installing. Refer to DVD Player -R7-, REMOVING AND INSTALLING .
- TV Tuner -R78-
- In rear right of luggage compartment
- the appropriate Wiring Diagram
- Removing and installing. Refer to TV TUNER, REMOVING AND INSTALLING .
- TV Card Reader -R204-
- In rear right of luggage compartment
- the appropriate Wiring Diagram
- Removing and installing. Refer to TV CARD READER, REMOVING AND INSTALLING .
