Left And Right Rear Bass Speaker -R15- / -R17-, Removing And Installing, 9VD/9VS: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2- from the Left Rear Bass Speaker -R15- -1-.

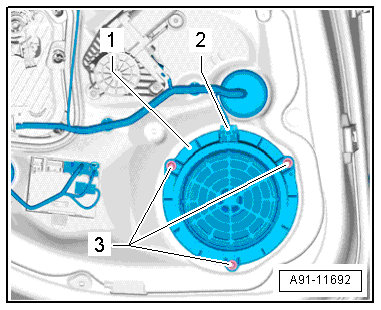

Fig 1: Disconnecting Connector -2- From Left Rear Bass Speaker -R15- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

-- Remove the Left Rear Bass Speaker -R15- -1-.
