Left And Right Front Treble Speaker -R20- / -R22- And Left And Right Front Treble Speaker Motor -V344- / -V345-, Removing And Installing, 8RF: Removing
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
-- Remove the bolts -1- on the Left Front Treble Speaker -R20- -2- and then remove the Left Front Treble Speaker -R20- -2- upward from the centering pins -3-.

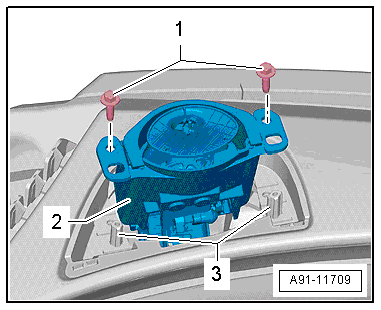

Fig 1: Identifying Screws -1- On Left Front Treble Speaker -R20- -2- And Remove Left Front Treble Speaker -R20- -2- Upward From Centering Pins -3-
-- Release and disconnect the connector from the Left Front Treble Speaker -R20- -2-.
