Left And Right Front Midrange Speaker 2 -R276- / -R277-, Removing And Installing, 9VS/8RF: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the A-pillar upper trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

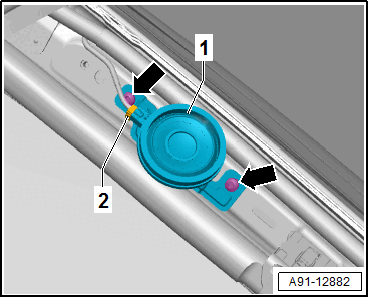

-- Remove the screws -arrows- from the Left Front Midrange Speaker 2 -R276- -1- and remove the Left Front Midrange Speaker 2 -R276- -1- from the A-pillar.

GWWA91-12882Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2- from the Left Front Midrange Speaker 2 -R276- -2-.
