Left/Right Rear Speaker -RX17- / -RX18-, Removing And Installing, 8RF: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the headliner, but do not remove it from the vehicle. Refer to HEADLINER, REMOVING AND INSTALLING .

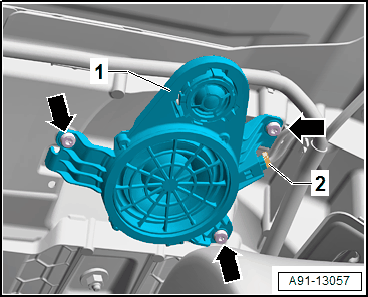

-- Release and disconnect the connector -2- from the Left Rear Speaker -RX17- -1-.

GWWA91-13057Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- from the Left Rear Speaker -RX17- -1-.

-- Remove the Left Rear Speaker -RX17- -1-.
