Left And Right Effects Speaker -R209- / -R210-, Removing And Installing, 9VS: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the headliner, but do not remove it from the vehicle. Refer to HEADLINER, REMOVING AND INSTALLING .

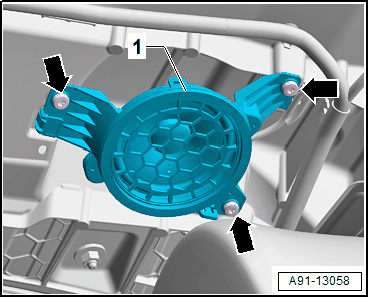

-- Release and disconnect the connector from the Left Effects Speaker -R209- -1-.

GWWA91-13058Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- from the Left Effects Speaker -R209- -1-.

-- Remove the Left Effects Speaker -R209- -1-.
