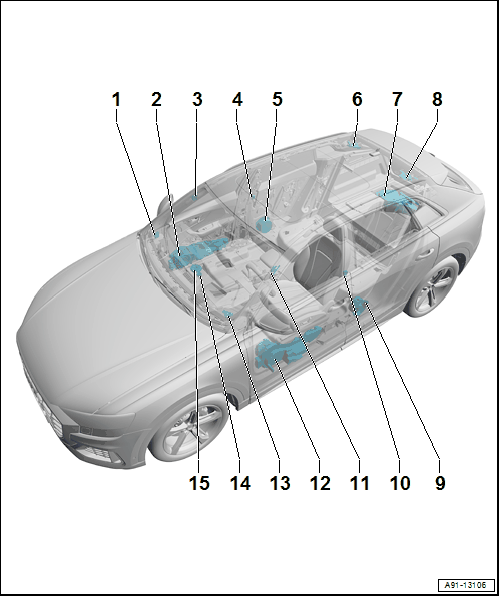

Component Location Overview - Sound System, Speakers, 9VS
- Right Front Treble Speaker -R22-
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, 9VD/9VS .
- Right Front Door Speaker -RX3-
- Right Front Bass Speaker -R23-
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Right Front Midrange Speaker -R104-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER -R103- / -R104-, REMOVING AND INSTALLING, 9VS/8RF .
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Right Front Midrange Speaker 2 -R277-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER 2 -R276- / -R277-, REMOVING AND INSTALLING, 9VS/8RF .
- Right Rear Treble Speaker -R16-
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING .
- Right Rear Bass Speaker -R17-
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 9VD/9VS .
- Right Effects Speaker -R210-
- Removing and installing. Refer to LEFT AND RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, 9VS .
- Subwoofer -R211-
- Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Left Effects Speaker -R209-
- Removing and installing. Refer to LEFT AND RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, 9VS .
- Left Rear Bass Speaker -R15-
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 9VD/9VS .
- Left Rear Treble Speaker -R14-
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING .
- Left Front Midrange Speaker 2 -R276-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER 2 -R276- / -R277-, REMOVING AND INSTALLING, 9VS/8RF .
- Left Front Door Speaker -RX2-
- Left Front Bass Speaker -R21-
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Left Front Midrange Speaker -R103-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER -R103- / -R104-, REMOVING AND INSTALLING, 9VS/8RF .
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, 9VS/8RF .
- Left Front Treble Speaker -R20-
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, 9VD/9VS .
- Center Speaker 2 -R219-
- Removing and installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING, 9VS/8RF .
- Center Speaker -R208-
- Removing and installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING, 9VD/9VS/8RF .
