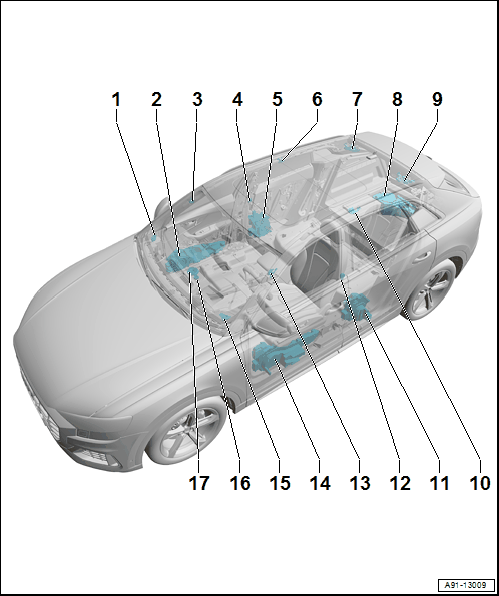

Component Location Overview - Sound System, Speakers, 8RF

Courtesy of AUDI OF AMERICA, LLC

Right Front Treble Speaker -R22-
- With Right Front Treble Speaker Motor -V345-
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22- AND LEFT AND RIGHT FRONT TREBLE SPEAKER MOTOR -V344- / -V345-, REMOVING AND INSTALLING, 8RF .
Right Front Door Speaker -RX3-
- Right Front Bass Speaker -R23-
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, 9VS/8RF .
  - Right Front Midrange Speaker -R104-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER -R103- / -R104-, REMOVING AND INSTALLING, 9VS/8RF .
Right Front Midrange Speaker 2 -R277-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER 2 -R276- / -R277-, REMOVING AND INSTALLING, 9VS/8RF .
Right Rear Treble Speaker -R16-
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING .
Right Rear Door Speaker -RX16-
- Right Rear Bass Speaker -R17-
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 8RF .
  - Right Rear Midrange Speaker -R106-
- Removing and installing. Refer to LEFT AND RIGHT REAR MIDRANGE SPEAKER -R105- / -R106-, REMOVING AND INSTALLING, 8RF .
Right Rear Midrange Speaker 2 -R340-
- Removing and installing. Refer to LEFT AND RIGHT REAR MIDRANGE SPEAKER 2 -R341- / -R340-, REMOVING AND INSTALLING, 8RF .
Right Rear Speaker -RX18-
- Right Effects Speaker -R210-
- Removing and installing. Refer to LEFT AND RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, 9VS .
  - Right Rear Treble Speaker 2 -R218-
- Removing and installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKERS 2 -R217- / -R218-, REMOVING AND INSTALLING, 8RF .
Subwoofer -R211-
- Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
Left Rear Speaker -RX17-
- Left Effects Speaker -R209-
- Removing and installing. Refer to LEFT AND RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, 9VS .
  - Left Rear Treble Speaker 2 -R217-
- Removing and installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKERS 2 -R217- / -R218-, REMOVING AND INSTALLING, 8RF .
Left Rear Midrange Speaker 2 -R341-
- Removing and installing. Refer to LEFT AND RIGHT REAR MIDRANGE SPEAKER 2 -R341- / -R340-, REMOVING AND INSTALLING, 8RF .
Left Rear Door Speaker -RX15-
- Left Rear Bass Speaker -R15-
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 8RF .
  - Left Rear Midrange Speaker -R105-
- Removing and installing. Refer to LEFT AND RIGHT REAR MIDRANGE SPEAKER -R105- / -R106-, REMOVING AND INSTALLING, 8RF .
Left Rear Treble Speaker -R14-
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING .
Left Front Midrange Speaker 2 -R276-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER 2 -R276- / -R277-, REMOVING AND INSTALLING, 9VS/8RF .
Left Front Door Speaker -RX2-
- Left Front Bass Speaker -R21-
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, 9VS/8RF .
  - Left Front Midrange Speaker -R103-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER -R103- / -R104-, REMOVING AND INSTALLING, 9VS/8RF .
Left Front Treble Speaker -R20-
- With Left Front Treble Speaker Motor -V344-
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22- AND LEFT AND RIGHT FRONT TREBLE SPEAKER MOTOR -V344- / -V345-, REMOVING AND INSTALLING, 8RF .
Center Speaker 2 -R219-
- Removing and installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING, 9VS/8RF .
Center Speaker -R208-
- Removing and installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING, 9VD/9VS/8RF .
