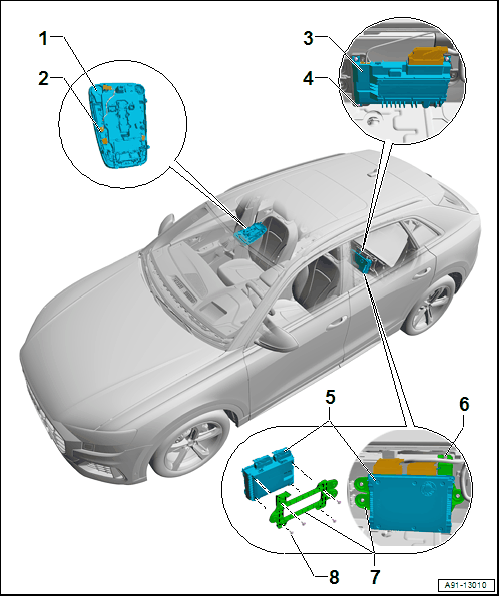

Component Location Overview - Sound System, Microphones And Amplifiers

Courtesy of AUDI OF AMERICA, LLC

1. Front Roof Module -WX3-
   • Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
2. Interior Microphone -R74-, 9VS/8RF
   • Removing and installing. Refer to Interior Microphone -R74-, REMOVING AND INSTALLING .
3. Digital Sound System Control Module -J525-, 9VS
   • the appropriate Wiring Diagram
   • Removing and installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, 9VS .
4. Bracket
   • 5 Nm
   • Screws, quantity: 4
5. Digital Sound System Control Module -J525-, 8RF
   • the appropriate Wiring Diagram
   • Removing and installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, 8RF .
6. Bolt
   • 5 Nm
   • Quantity: 4
7. Bracket
8. Bolt
   • 6 Nm
   • Quantity: 4
