Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the right front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Lay the carpet at the right front of the center console. Refer to CARPET, REMOVING AND INSTALLING .

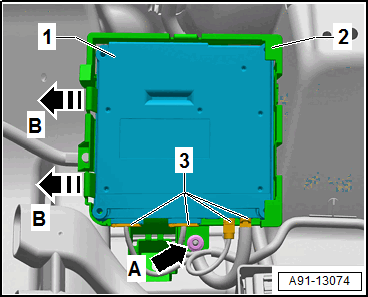

The Control Module for Emergency Call Module and Communication Unit -J949- is clipped into the bracket.
-- Push the retainers in the direction of the -arrow B-
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- from the bracket -2-.
-- Release and disconnect the connectors -3-.
Bracket, Removing
-- Remove the wiring harness from the bracket -2-.
-- Remove the nut -arrow A-.
-- Pull the bracket -2- off the threaded pin and remove it rearward from the body.
