Overview - MULTIFUNCTION Steering Wheel

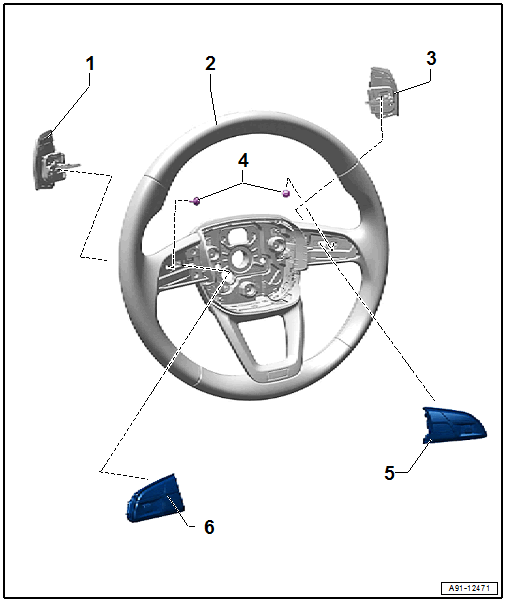

Fig 1: Exploded View Of Multifunction Steering Wheel, Steering Wheel With Trapezoidal Airbag

GWWA91-12471

Courtesy of AUDI OF AMERICA, LLC

Tiptronic Downshift Button -E480-
- Removing and installing. Refer to Tiptronic Downshift Button -E480- /Tiptronic Upshift Button -E479-, REMOVING AND INSTALLING .
Steering Wheel
Tiptronic Upshift Button -E479-
- Removing and installing. Refer to Tiptronic Downshift Button -E480- /Tiptronic Upshift Button -E479-, REMOVING AND INSTALLING .
Bolt
- 1 Nm
Right Multifunction Buttons on Steering Wheel -E441-
- Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
Left Multifunction Buttons on Steering Wheel -E440-
- Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
