Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING: Removing
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the Switch Module in Instrument Panel, Center -EX22-. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
-- Release and disconnect the connectors from the Front Information Display Control Head 2 -J1060-.

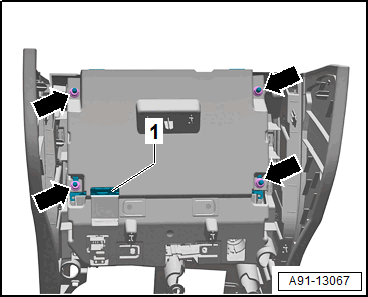

-- Remove the nuts -arrows- and remove the Front Information Display Control Head 2 -J1060- with the frame -1- from the center console insert.
The Front Information Display Control Head 2 -J1060- is secured with four screws on the side of the frame.

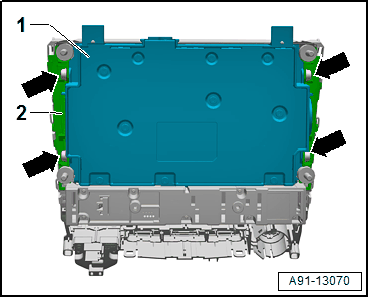

-- Remove the screws -arrows- and remove the Front Information Display Control Head 2 -J1060- -1- from the frame -2-.
