Front Information Display Control Head -J685-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the right upper instrument panel trim on the driver side. Refer to OVERVIEW - INSTRUMENT PANEL .

-- Remove the upper instrument panel trim on the front passenger side. Refer to OVERVIEW - INSTRUMENT PANEL .

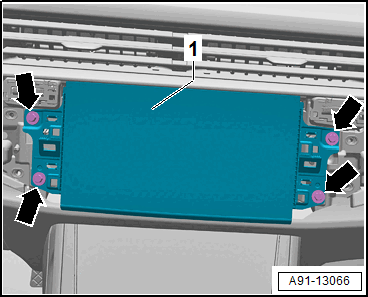

-- Remove the screws -arrows- and remove the Front Information Display Control Head -J685- -1- from the instrument panel.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors from the Front Information Display Control Head -J685- -1-.
