Driver Volume Control -E67-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the center console insert. Refer to OVERVIEW - CENTER CONSOLE .

-- Release and disconnect the connectors.

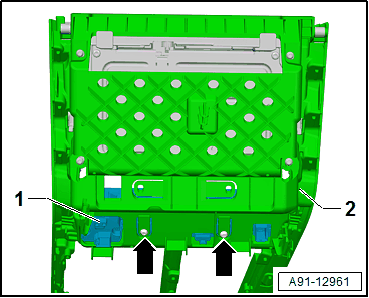

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the switch module -1- from the center console insert -2-.

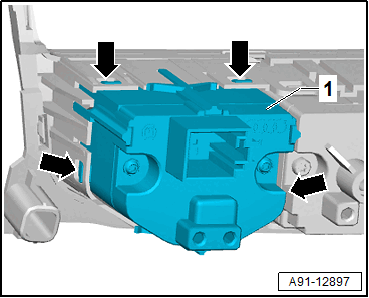

-- Release the catches -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Driver Volume Control -E67- -1- from the front center console display cover.
