DVD Player -R7-, REMOVING AND INSTALLING: Removing

-- Open the glove compartment.

-- Remove any data storage devices in the DVD Player -R7-.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

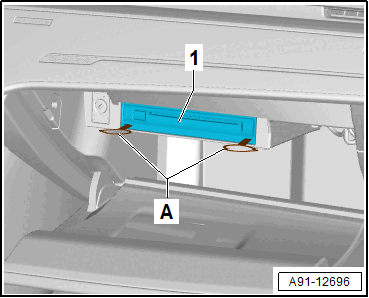

-- Insert the two : T10057  -A- into the release slots on the DVD Player -R7- -1-.

Courtesy of AUDI OF AMERICA, LLC

• The points on the grip eyelets of the : T10057  face outward.
• Both : T10057  must engage.

-- Remove the DVD Player -R7- -1- from the glove compartment at the grip eyelets for the : T10057  -A-

-- Release and disconnect the connectors from the DVD Player -R7- -1-.

-- Press the locking tabs on the DVD Player -R7- to remove the : T10057  .
