Fuel Temperature Sensor -G81- AND Tank Ventilation Pressure Sensor 1 -G950-, REMOVING AND INSTALLING: Removing
- Fuel tank removed. Refer to FUEL TANK, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM

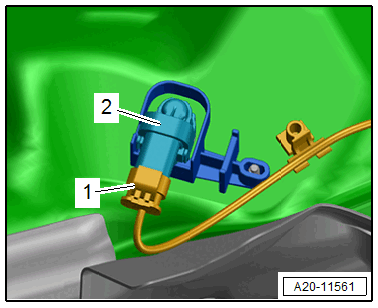

-- Release and disconnect the connector -1-.
-- Remove the Fuel Temperature Sensor -G81- and Tank Ventilation Pressure Sensor 1 -G950- -2- from the fuel tank. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
