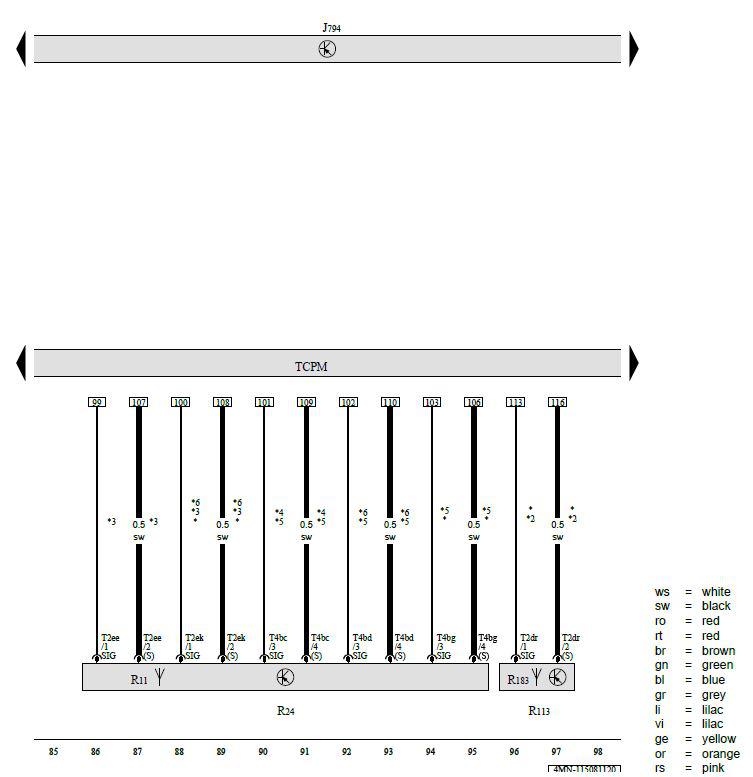

Information Electronics Control Module 1, Antenna Amplifier, Antenna Amplifier 4

Courtesy of AUDI OF AMERICA, LLC

J794 -  Information Electronics Control Module 1

R11 -  Antenna

R24 -  Antenna Amplifier

R113 -  Antenna Amplifier 4

R183 -  Digital Radio Antenna

T2dr -  2-Pin Connector, Black

T2ee -  2-Pin Connector, White

T2ek -  2-Pin Connector, Green

T4bc -  4-Pin Connector, White

T4bd -  4-Pin Connector, Purple

T4bg -  4-Pin Connector, Green

TCPM -  Coupling Point on Instrument Panel, Center

* -  For Vehicles with Digital Radio

*2 -  For Vehicles Without US Equipment

*3 -  For Vehicles Without TV Reception

*4 -  For Vehicles Without Japan Equipment

*5 -  For Vehicles with TV Tuner

*6 -  For Vehicles with Japan Equipment
