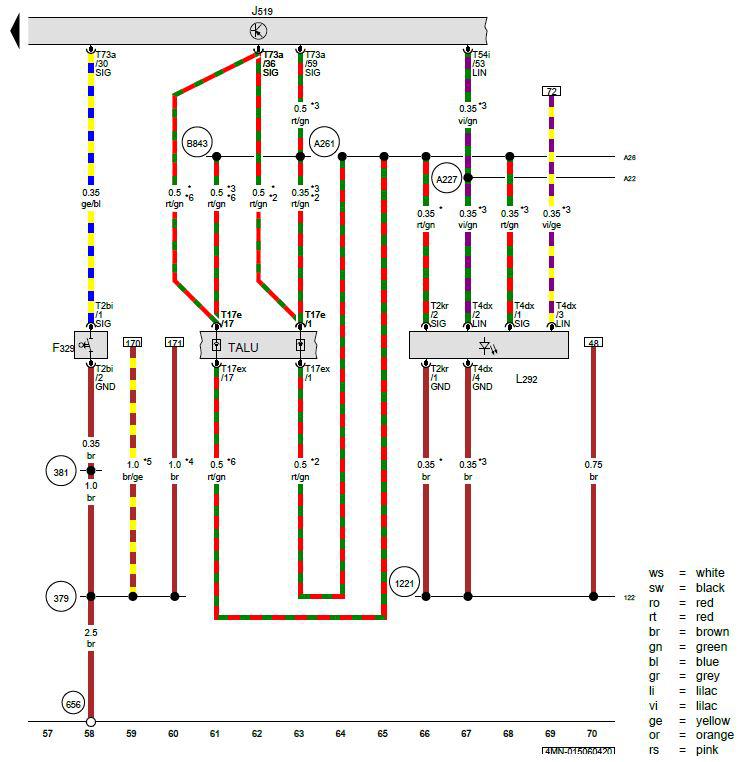

Hood Contact Switch 2, Vehicle Electrical System Control Module, Instrument Panel Ambient Lighting Lamp 1, Ground Connection 7 (in Instrument Panel Wiring Harness)
F329 - Hood Contact Switch 2
J519 - Vehicle Electrical System Control Module
L292 - Instrument Panel Ambient Lighting Lamp 1
T2bi - 2-Pin Connector, Black
T2kr - 2-Pin Connector, Black
T4dx - 4-Pin Connector, Black
T17e - 17-Pin Connector, Blue
T17ex - 17-Pin Connector, Blue
T54i - 54-Pin Connector, Black
T73a - 73-Pin Connector, Black, Black
TALU - Coupling Point on Left A-Pillar, Bottom
379 - Ground Connection 14 (in Main Wiring Harness)
381 - Ground Connection 16 (in Main Wiring Harness)
656 - Ground Connection on Right Headlamp
1221 - Ground Connection 7 (in Instrument Panel Wiring Harness)
A227 - LIN Bus Connection 2 (in Instrument Panel Wiring Harness)
A261 - Connection 5 (in Instrument Panel Wiring Harness)
B843 - LIN Bus Connection 9 (in Main Wiring Harness)
* - For Vehicles with Auxiliary Lamps
*2 - Through June 2020
*3 - For Vehicles with Ambient Lighting
*4 - Omitted as a Running Change
*5 - Running Change
*6 - From June 2020
