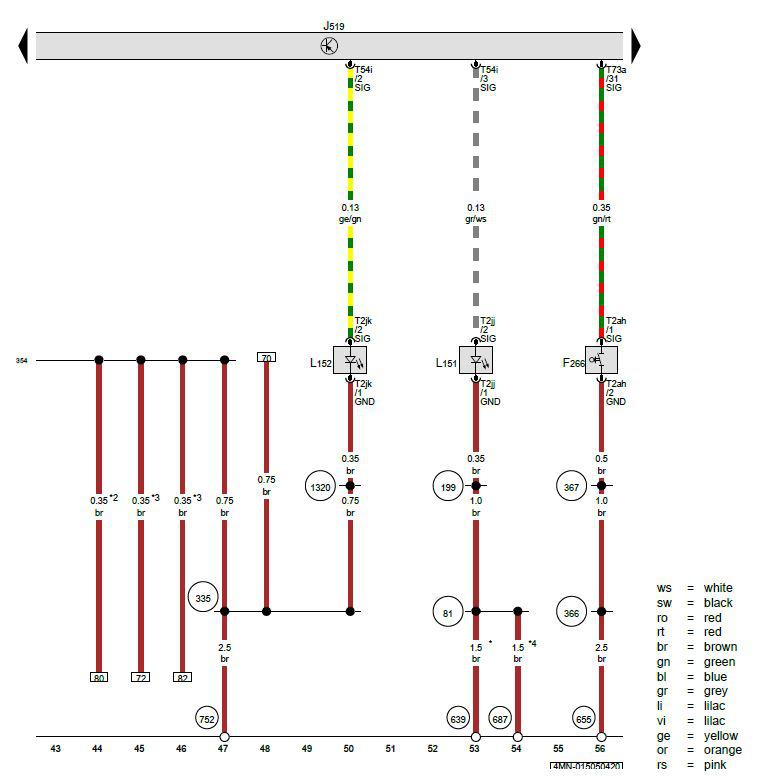

Engine Hood Contact Switch, Vehicle Electrical System Control Module, Left Front Footwell Illumination Bulb, Right Front Footwell Illumination Bulb
F266 - Engine Hood Contact Switch
J519 - Vehicle Electrical System Control Module
L151 - Left Front Footwell Illumination Bulb
L152 - Right Front Footwell Illumination Bulb
T2ah - 2-Pin Connector, Black
T2jj - 2-Pin Connector, Black
T2jk - 2-Pin Connector, Black
T54i - 54-Pin Connector, Black
T73a - 73-Pin Connector, Black, Black
81 - Ground Connection 1 (in Instrument Panel Wiring Harness)
199 - Ground Connection 3 (in Instrument Panel Wiring Harness)
335 - Ground Connection 5 (in Instrument Panel Wiring Harness)
354 - Ground Connection 6 (in Instrument Panel Wiring Harness)
366 - Ground Connection 1 (in Main Wiring Harness)
367 - Ground Connection 2 (in Main Wiring Harness)
639 - Ground Connection on Left A-Pillar
655 - Ground Connection on Left Headlamp
687 - Ground Connection 1 on Center Tunnel
752 - Ground Connection 3 on Right A-Pillar
1320 - Ground Connection 11 (in Instrument Panel Wiring Harness)
* - For LHD Vehicles
*2 - For Vehicles with Auxiliary Lamps
*3 - For Vehicles with Ambient Lighting
*4 - For RHD Vehicles
