Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, LOW VERSION: Removing

The Data Bus on Board Diagnostic Interface -J533- is located under the left front seat.

-- Detach and lift the front carpet on the left side of the vehicle. Refer to CARPET, REMOVING AND INSTALLING .

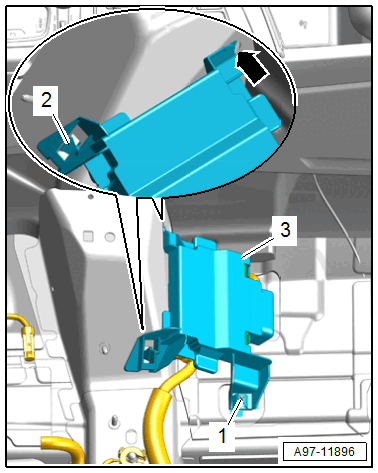

-- Release the catch -2- and remove the mount -3- from the threaded pin -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide out the mount from the body -arrow-.

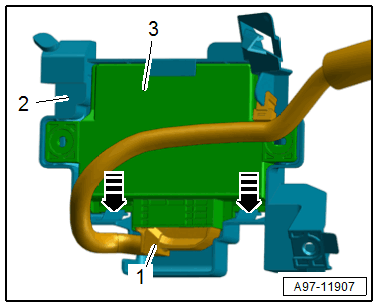

-- Release the retainers in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the data bus on board diagnostic interface -3- from the mount -2-.

-- Release and disconnect the connector -1-.
