Brake Caliper, Replacing: Removing
-- Release the parking brake.
-- Switch off the ignition.

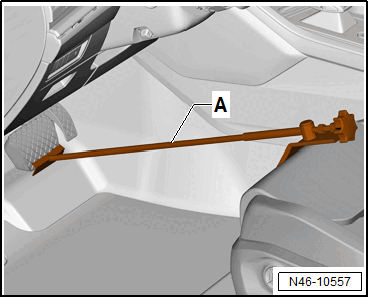

-- Insert the : VAG1869/2 -A- between the brake pedal and driver seat. Pretension the brake pedal at least 60 mm.
By doing this, the valves in the brake master cylinder are closed and the brake fluid reservoir does not run empty.
-- Remove the rear wheel. Refer to WHEEL, CHANGING .
Leaking brake fluid increases the risk of injury.
Risk of skin irritation and injury.
- Wear safety gloves.

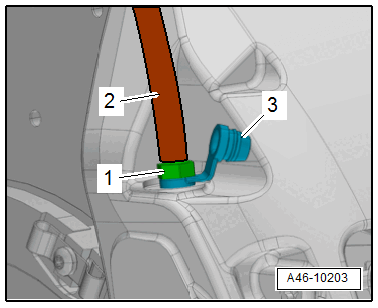

-- Remove the protective cap -3- from the bleed screw -1- on the left front caliper.
-- Connect the bleeder bottle hose -2- as shown.
-- Open the bleed screw to reduce the pressure in the brake system.
-- Close the bleed screw and remove the bleeder bottle.
-- Tighten the bleeder valve to 11 Nm.
-- Repeat the procedure on the left rear brake caliper.
Do not remove the : VAG1869/2 .

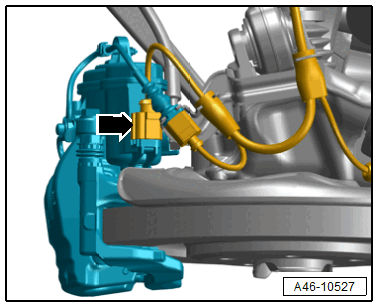

-- Disconnect the connector -arrow- from the electro-mechanical parking brake motor.
There is a risk of contamination and paint damage from leaking brake fluid.
- Rinse off any leaking brake fluid immediately using plenty of water.
-- To protect against escaping brake fluid, place a cloth under the separating point.
Risk of accident due to the brakes malfunctioning.
- Brake fluid must never come into contact with fluids containing mineral oils (oil, gasoline, cleaning solutions).
- Do not use safety gloves that have been dirtied by oil or grease.

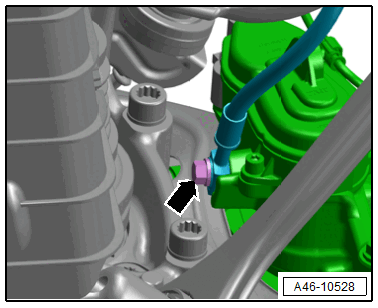

-- Remove the banjo bolt -arrow-.
-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .
-- Remove the electro-mechanical parking brake motor. Refer to Left Parking Brake Motor -V282- /Right Front Upper Body Vent Motor -V238-, REMOVING AND INSTALLING .
