Brake Caliper, Replacing: Installing
Install in reverse order of removal and note the following:
TIP:
- Clean bolts before reusing.
- Replace damaged bolts.
- Always replace self-locking bolts.
-- Install the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .

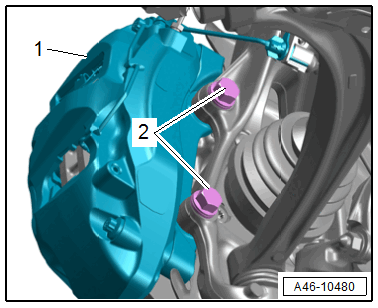

-- Tighten the bolts -2-.

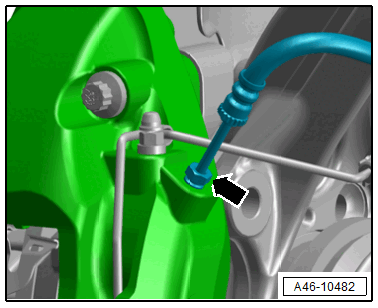

-- Bring the brake hose into the installation position and tighten the union bolt -arrow-.

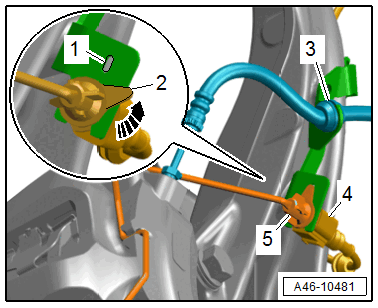

-- Bring the connector -5- into its installed position and turn in the direction of -arrow- until the tab -2- engages in the opening -1- on the bracket.
-- Connect the connector -4-.
Make sure that the wire is routed correctly.
Make sure the wire is not blocked, bent, or rubbing against the vehicle.
-- Remove the : VAG1869/2 .
-- Only bleed the brakes on the wheel from which the brake caliper and the brake hose were loosened. Refer to HYDRAULIC SYSTEM, BLEEDING .
If the brake pedal still feels "soft", completely bleed the brakes. Refer to HYDRAULIC SYSTEM, BLEEDING .
-- Check brake fluid level, and fill if necessary.
Faulty brakes increase the risk of an accident.
- Make sure the brakes are working correctly before driving the vehicle for the first time.
-- With the vehicle stationary, firmly press the brake pedal several times so that the brake pads in the operating condition properly sit in their respective position.
