Cover, Removing And Installing: Removing

-- Open the door.

Front Door:

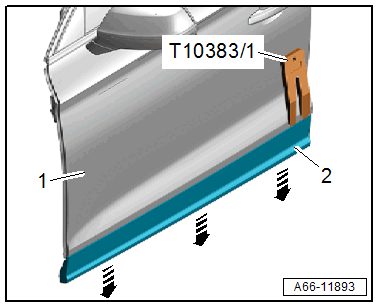

GWWA66-11893Courtesy of AUDI OF AMERICA, LLC

-- Loosen the seam seal in the area of the door cover -2-. Refer to SEAM SEAL, REMOVING AND INSTALLING .

-- Carefully warm up the door cover -2- using the : VAS1978/14A  and using the : T10383/1  , pry out of the door -1- and disengage downward -arrows-.

Rear Door:

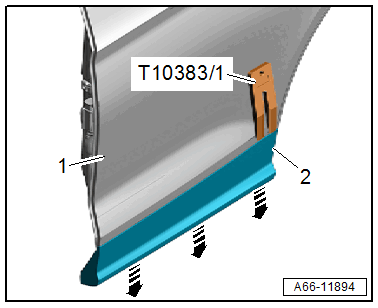

GWWA66-11894Courtesy of AUDI OF AMERICA, LLC

-- Loosen the seam seal in the area of the door cover -2-. Refer to SEAM SEAL, REMOVING AND INSTALLING, FRONT .

-- Carefully warm up the door cover -2- using the : VAS1978/14A  and using the : T10383/1  , pry out of the door -1- and disengage downward -arrows-.
