Locking Mechanism Trim, Removing And Installing: Removing

-- Fold the backrest with the pass-through forward.

-- Move the headrest all the way up.

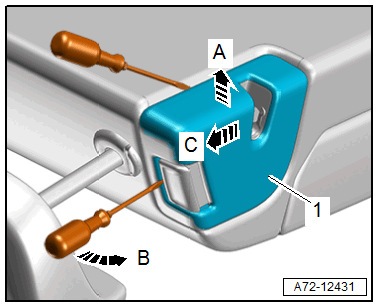

-- Release the retainers with a small screwdriver consecutively -A and B arrows- and remove the trim -1- for the locking mechanism upward at the same time -arrow C-.

Courtesy of AUDI OF AMERICA, LLC
