Seat Height Adjustment Handle, Removing And Installing: Removing

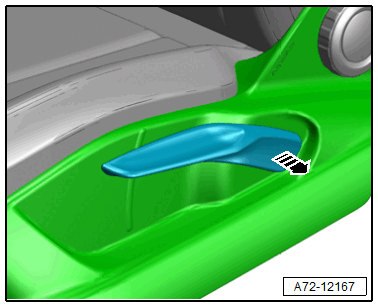

-- Remove the seat height adjustment lever to the side from the seat in the direction of the -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- To remove the adapter, remove the seat height adjuster -1-, and the seat frame trim panel on the side sill side. Refer to SEAT FRAME TRIM PANEL ON SIDE SILL SIDE, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

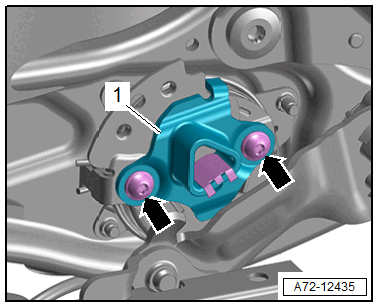

-- Remove the bolts -arrows-.

-- Remove the adapter for the seat height adjuster -1-.
