Side Spoiler, Removing And Installing: Installing
Install in reverse order of removal and note the following:

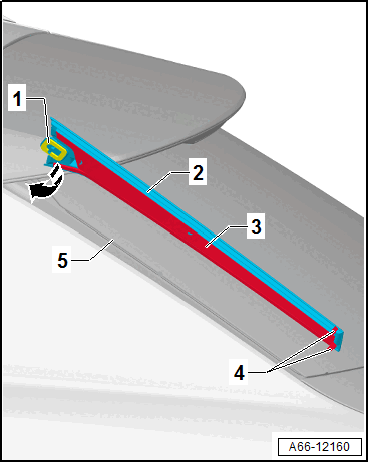

-- Check the foam seal -1- for damage.
- The vehicle and the spoiler must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Remove adhesive residue from the body.
-- Clean the glass side of the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.
-- Fold back the ends of the protective film -3-, or attach a pulling aid -5- to the protective film -3-.
-- Guide the centering pin into the rear lid in direction of -arrow- and push up all the way.
-- Align the spoiler -2- on the rear lid -5- while paying attention to the adjustment dimensions -item b- ADJUSTMENT DIMENSIONS - List Item: b - .
-- Remove the peel-off backing -3- from the tape.
-- Press on over the entire length of the spoiler -2- using the : 3356 .
- Vehicle resting time is at least 30 minutes at room temperature.
