Midrange Speaker Trim, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
- Before installing, check all the fasteners for damage and replace if necessary.

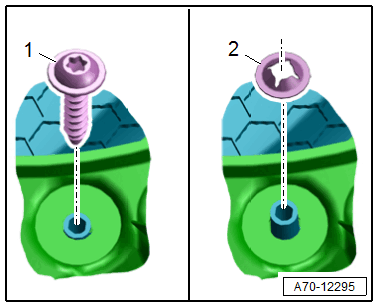

-- When using a speaker trim that has already been welded, drill the screw holes to a 3.0 mm diameter and secure with screws -1-.
-- Insert the new speaker trim into the door trim panel and secure the plastic domes with lock washers -2-.
