Wire Junction -TV1-, REMOVING AND INSTALLING: Removing
-- Disconnect the ground cable to the Battery -A- when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- On vehicles with 48 volt system (PR number VH2/VH3) must be de-energized before the 48 V system. Refer to 48V SYSTEM, DE-ENERGIZING .
-- Remove the front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the screw clips -A-.
-- Loosen and remove the insulation -B- from the A/C unit air intake manifold.
-- Push the carpet in the area of the footwell to the side as far as possible.

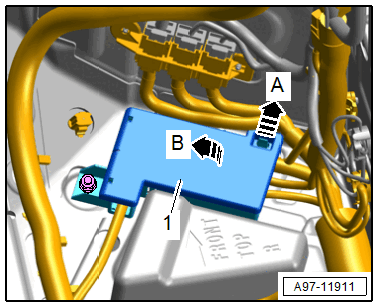

-- Release the retainer in direction of -arrow A- and open the cover -1- in direction of -arrow B-.

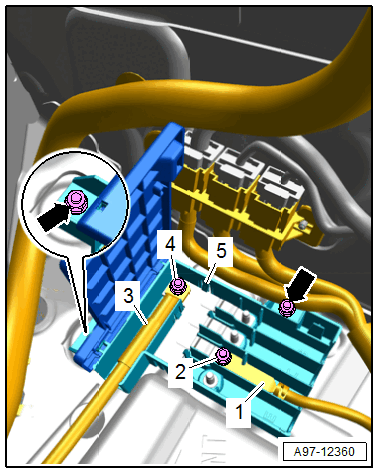

-- Remove the nuts -2 and 4- and free up the wires -1 and 3-.
-- Remove the nuts -arrows-.
-- Remove the E-box -5-.
