Grommet, Removing And Installing: Installing

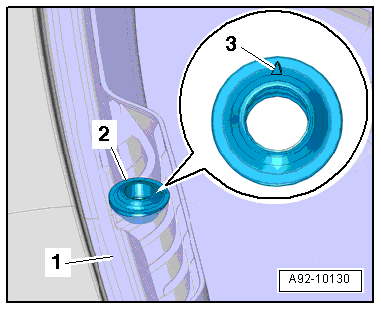

Fig 1: Identifying Marking -3- Facing Upward

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

-- Insert the grommet -2- in the rear window -1-.

• The marking -3- must face upward.
