Overview - Screen Separator

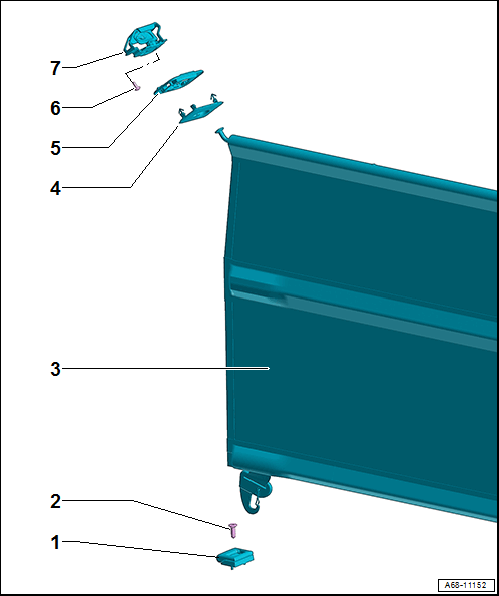

Fig 1: Exploded View Of Screen Separator

Courtesy of AUDI OF AMERICA, LLC

Tie Down
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Quantity: 2 each
Bolt
- Tightening specification. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Quantity: 2 each
Screen Separator
Trim
- Pry out with Trim Removal Wedge: 3409
Trim Lower Section
Bolt
- 9 Nm
Bracket
- Removing and Installing. Refer to SCREEN SEPARATOR BRACKET, REMOVING AND INSTALLING .
- Quantity: 2 each
