Rear Axle Camber, Adjusting

Special tools and workshop equipment required

• Fine tooth ratchet, commercially available
• 21 mm internal multi-point socket, commercially available

Procedure

Courtesy of AUDI OF AMERICA, LLC

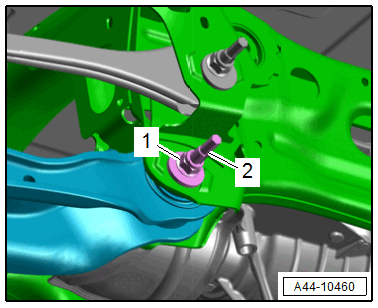

-- Remove the nut -1- for the threaded connection between the subframe/lower rear transverse link. Install a new nut all the way.

-- Adjust the camber by rotating the adjusting bolt -2-.

TIP:

To turn the adjusting screw, turn the hex head at the >>top of the screw<<.

• Axle alignment specified values. Refer to AXLE ALIGNMENT SPECIFIED VALUES .
• The maximum adjustment range is 135° to left or right of center position.
• Do not rotate the adjusting bolt -2- further once the end position has been reached or the components will be damaged.
• For clarity the rear wheel is not shown.

-- Tighten the nut -1-.

-- Then check the camber value again. Refer to AXLE ALIGNMENT SPECIFIED VALUES .

Tightening Specifications

• Refer to OVERVIEW - TRANSVERSE LINK
