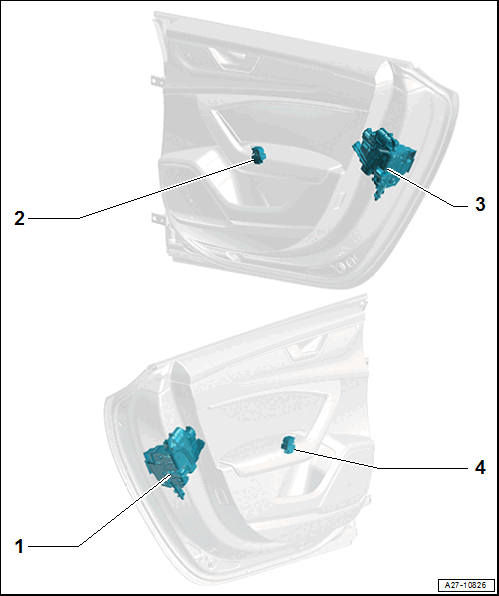

Component Location Overview - Controls In Rear Doors

Courtesy of AUDI OF AMERICA, LLC

1. Driver Side Rear Door Contact Switch -F505-
   • Integrated in the door lock
   • Cannot be replaced separately
   • Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
2. Control Head in Passenger Side Rear Door -EX60-
   • Removing and installing. Refer to CONTROL HEAD IN PASSENGER AND DRIVER SIDE REAR DOOR -EX60- / -EX61-, REMOVING AND INSTALLING .
3. Passenger Side Rear Door Contact Switch -F506-
   • Integrated in the door lock
   • Cannot be replaced separately
   • Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
4. Control Head in Driver Side Rear Door -EX61-
   • Removing and installing. Refer to CONTROL HEAD IN PASSENGER AND DRIVER SIDE REAR DOOR -EX60- / -EX61-, REMOVING AND INSTALLING .
