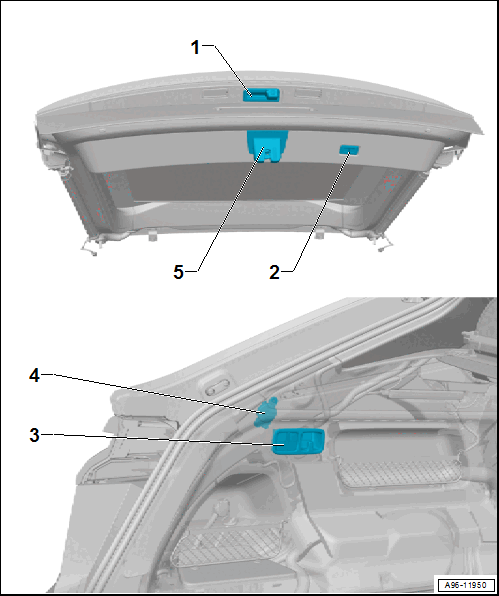

Component Location Overview - Controls In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Release Button In Rear Lid Handle -E234-
   • Removing and installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING .
2. Rear Lid Control Head -EX58-
   • Removing and installing. Refer to Rear Lid Control Head -EX58-, REMOVING AND INSTALLING .
3. Loading Sill Lowering and Trailer Hitch Control Head -EX52-
   • Includes the following components
     • Load Level Button -E539-
     • Power Pivoting Trailer Hitch Button -E474-
   • Removing and installing. Refer to Loading Sill Lowering and Trailer Hitch Control Head -EX52-, REMOVING AND INSTALLING .
4. Rear Lid Warning Buzzer -H32-
   • Removing and installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
5. Rear Lid Contact Switch
   • Integrated in the rear lid latch
   • Cannot be replaced separately
   • Replace the rear lid latch if it is faulty. Refer to LATCH, REMOVING AND INSTALLING .

Loading Sill Lowering and Trailer Hitch Control Head EX52 - Tightening Specifications

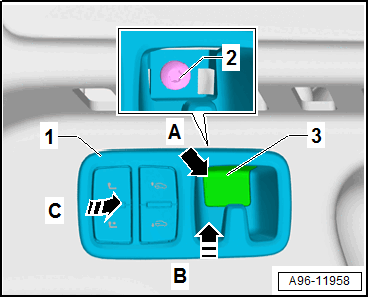

Fig 1: Loading Sill Lowering and Trailer Hitch Control Head -EX52-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screw -2- to 4 Nm.

Housing for Release Button In Rear Lid Handle E234 - Tightening Specifications

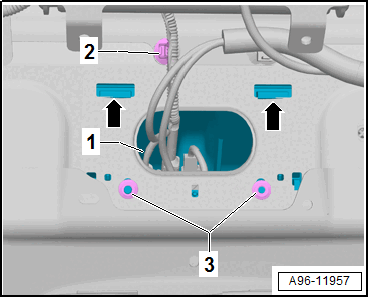

Fig 2: Housing for Release Button In Rear Lid Handle -E234-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -3- to 4 Nm.
