Side Air Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the upper air duct -1-. Refer to UPPER AIR DUCT, REMOVING AND INSTALLING .

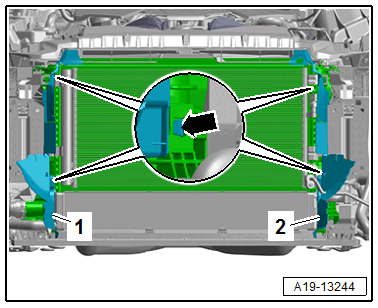

-- Release the side retainers -arrows- with the Elbow Assembly Tool: T10118 .
-- Remove the side air ducts -1 and 2-.
