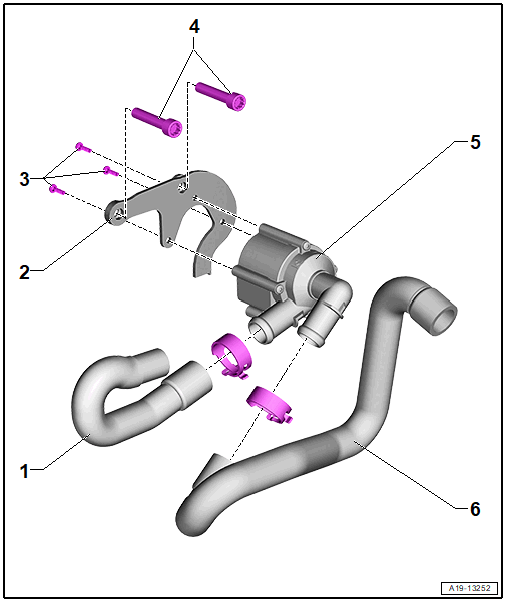

OVERVIEW - Recirculation Pump 5 -V406-
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Bracket
- For the Recirculation Pump 5 -V406-
- Different versions
- Bolt
- 1.5 Nm
- Quantity: 3
- Bolt
- 20 Nm
- Quantity: 2
- Recirculation Pump 5 -V406-
- Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and Installing. Refer to Recirculation Pump 5 -V406-, REMOVING AND INSTALLING .
- Coolant Hose
