Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING

Procedure

• The engine is cold.

-- To reduce the residual pressure in the cooling system, briefly open the coolant expansion tank cap -1- by releasing the retainer in direction of -arrow-.

Fig 1: Coolant Expansion Tank

Courtesy of AUDI OF AMERICA, LLC

-- Reinstall the cap until it engages.

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the right wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Disconnect the connector -2-.

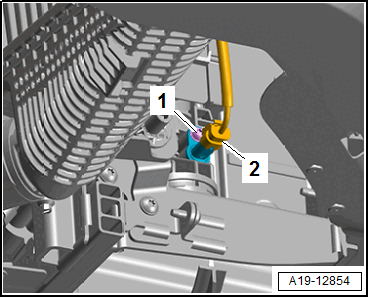

Fig 2: Engine Coolant Temperature Sensor on Radiator Outlet -G83- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Place a cloth underneath to catch any escaping coolant.

-- Remove the bolt -1- and the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.

TIP:

If an O-ring remains in the cylinder block, remove the O-ring with a wire.

• Replace the O-rings after removing them.

-- Insert the new engine coolant temperature sensor immediately so that as little coolant is lost as possible.

-- Install the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Install the right wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Check the coolant level. Refer to Coolant Level, Checking .

Tightening Specifications

• Refer to OVERVIEW - ENGINE COOLANT TEMPERATURE SENSOR .
