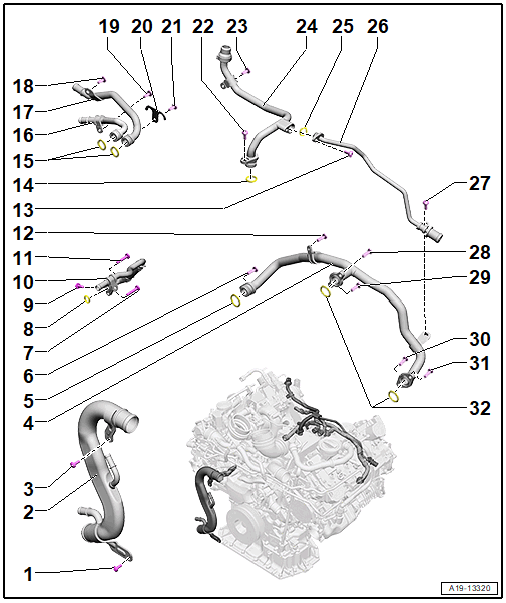

Coolant Pipes On The Engine
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 8 Nm
- Front Coolant Pipe 1
- Removing and Installing. Refer to FRONT COOLANT PIPE 1, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Rear Coolant Pipe 3
- Removing and Installing. Refer to REAR COOLANT PIPE 3, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Bolt
- 9 Nm
- Bolt
- Tightening specifications. Refer to OVERVIEW - GENERATOR .
- O-Ring
- Replace after removing
- Bolt
- 8 Nm
- Right Front Coolant Pipe
- Removing and Installing. Refer to RIGHT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- Tightening specifications. Refer to OVERVIEW - GENERATOR .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- O-Rings
- Replace after removing
- Quantity: 2
- Rear Coolant Pipe 5
- Removing and Installing. Refer to REAR COOLANT PIPES 4 AND 5, REMOVING AND INSTALLING .
- Rear Coolant Pipe 4
- Removing and Installing. Refer to REAR COOLANT PIPES 4 AND 5, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Retaining Plate
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Rear Coolant Pipe 2
- Removing and Installing. Refer to REAR COOLANT PIPE 2, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Rear Coolant Pipe 6
- Removing and Installing. Refer to REAR COOLANT PIPE 6, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Rings
- Replace after removing
- Quantity: 2
The marking on the coolant pipes and ends of coolant hoses must align.
