Right Front Coolant Pipe In Wheel Housing, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Place a cloth underneath to catch any escaping coolant.

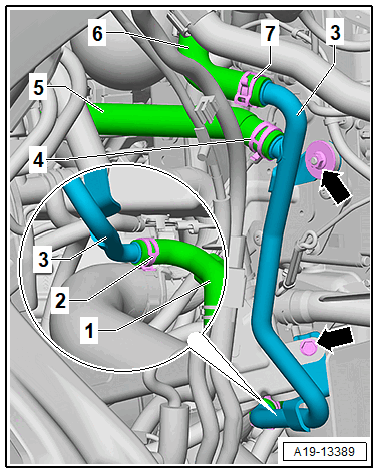

-- Clamp off the coolant hoses -1, 5 and 6- with Hose Clamps - Up To 25mm: 3094 .
-- Loosen the hose clamps -2, 4 and 7- and remove the coolant hoses -1, 5 and 6- from the coolant pipe -3-.
-- Remove the bolt and nut -arrows- and remove the coolant pipe -3-.
